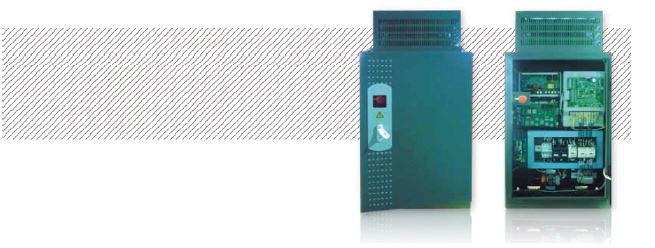

•Excellent integrated control system
Integrated control system is the advanced products in elevator field which make the inverter and main board as one unit. It is more convenient for commission and maintain.
•FUAO Elevator 6 advanced control technology
1. The advanced VVVF control system, creating the core brand;
2. Position sensor can detect the exact lift cabin position, and then make the lift run normally according
the speed diagram. It can realize stop directly and shorten the lift running time;
3. VVVF speed adjustment can calculate the best speed diagram. It can come to the best lift running
control by the requirement of speed and load. Continuously PIC control can realize the precision lift
operation control;
4. UPS Emergency leveling device can make the lift run to the nearest floor and open the door to release
the passengers when the power fails. It makes lift more safety;
5. LED dot matrix have good energy saving, long service life. Before designing, we set these lights as
standard configuration. By now they have gotten good reputation from clients;
6. 32 bits ARM microprocessor technology.
•Power integrated design and Innovation
1. Integrated design for brake power and 24v power supply;
2. Power supply module with brake strong excitation and lower voltage function;
3. Reduce the brake active noise via trigger signal;
4. Free choose the brake coil voltage DC220/DC110 via code switch.

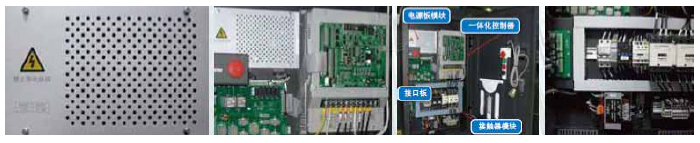

•Module connection
1. Module connect by plug in connector;
2. The integrated and interface board connection by 40 pin terminal, and bring in the input and output
signal to interface board. (22 input signal and 6 output signal).
•Module controller main parts
1. Integrated control module;
2. Power supply module;
3. Interface board module;
4. Contactor module;
5. Transformer module;
•Accessories
1. Inspection handle;
2. Brake resistor box;
3. Open door advanced module;
4. AC36V Transformer;
•Electrical parts selection standard
Choose the common widely used and high evaluation parts.
